DESIGNED AND MANUFACTURED IN THE USA
COMPACT, RUGGED AND EFFICIENT
SPIRIT IS A DEPENDABLE, ALL-WEATHER, HIGH-PERFORMANCE UNMANNED AERIAL VEHICLE DESIGNED AND BUILT IN THE USA

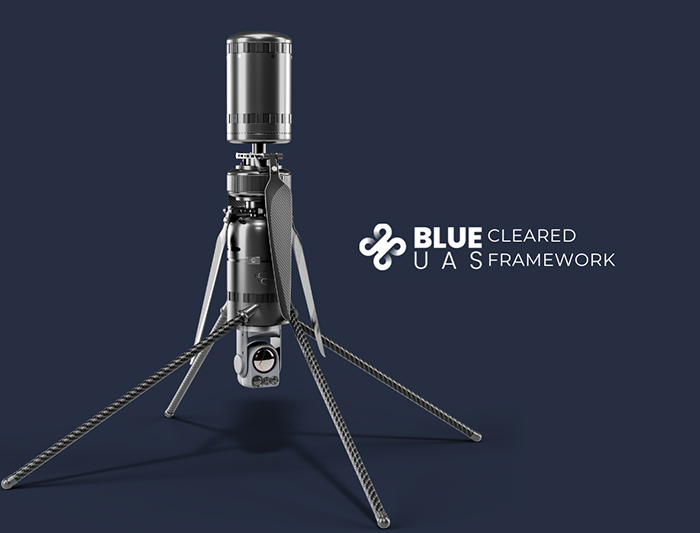

ASCENT AEROSYSTEMS SPIRIT™ JOINS BLUE UAS FRAMEWORK AS A CLEARED COMPONENT
Building on its status as a BLUE UAS Cleared system, the SPIRIT’s all-weather core platform has been added to the Defense Innovation Unit’s (DIU) Blue UAS Framework as a cleared component.
SPIRIT IS THE IDEAL PLATFORM
FOR MISSION-CRITICAL OPERATIONS
PAYLOAD FLEXIBILITY
One versatile platform for the payloads you have today…and the ones you’ll need tomorrow.
Two identical attach points allow plug-and-play modules to be quickly configured for any mission, and with nearly 10 pounds available, you can add additional batteries for longer flight times, or swap payload modules to suit each mission.
FUTURE-PROOF
Purpose built to mitigate obsolescence even as technologies change, SPIRIT provides a rugged, aircraft-grade foundation for the development of high-performance unmanned systems that meet the supply chain and security requirement of DoD acquisition and the rigors of evolving operational requirements. With its dual status as both a Blue UAS Cleared component and complete system, SPIRIT is aligned with DoD priorities delivering:
Streamlined Acquisition
Integration Flexibility
Future-Ready Design
ADAPTABILITY
1
Top and bottom quick-attach fittings
2
Payloads and batteries can be mounted or stacked on either point as necessary
3
Modules lock and unlock with a simple twist
4
Generous CG envelope accommodates a wide range of configurations
PAYLOAD DEVELOPMENT KIT
A free technical documentation package and CAD files are available for custom payload development
PAYLOADS AND SENSORS
A range of EO/IR sensors are available now, other modules available soon. Please contact us for details.
AIRFRAME ENHANCEMENTS
Tethered operations,
high speed, extended range flight,
launch sleeve,
…and more
THE SPIRIT’S COAXIAL ADVANTAGE
COMPACT & MODULAR
Enterprise level operations require solutions that are practical in the field. Spirit is compact and modular to support a growing ecosystem of easily swappable payloads and technology upgrades so it’s easy to bring what’s needed, where it’s needed, when it’s needed. No more high-stakes tradeoffs that compromise capability against bulky, heavy equipment. Setup is quick and easy, allowing for takeoff from any type of terrain.
RUGGED & ALL-WEATHER
Spirit’s rugged, all-weather airframe is protected against contamination so it can operate reliably in any weather, even heavy rain, sleet, snow and sand.
EFFICIENT & HIGH-PERFORMANCE
With nearly 10 pounds available for batteries and payloads, Spirit sets the new standard for performance in its weight class. The highly streamlined airframe has a top speed of over 60 miles per hour and can operate in winds that would ground other UAVs.
VERSATILE & ADAPTABLE
Spirit’s design allows for the integration of emerging technology and a growing ecosystem of payloads, power sources and launch methods that will support your mission today…and tomorrow.
SPECIFICATIONS
| Type & Construction | Coaxial Unmanned Aerial Vehicle. Polycarbonates, composites, aluminum |
| Dimensions | 12.0 inches (257mm) x 4.2 inches (106mm); Tip-to-tip diameter w/blades extended 25.5 inches (650mm) |
| Max Takeoff Weight | 13.5 lbs (6.1 kg) |
| Payload | Maximum available payload: 6.5 lbs. (3.0 kg); Supports dual payloads (top and bottom) |
| Empty Weight | Core Vehicle (no battery or payload) 4.1 lbs. (1.8 kg) |
| Drive System | Direct drive with 2x brushless motors |
| Power | 12S 44.4 volts Lithium Ion |
| Flight Endurance | ONE BATTERY: 38 min with no payload / 16 min w/max payload TWO BATTERIES: 53 min with no payload / 32 min w/max payload |
| Max Altitude | 14,600 feet above MSL (5,000m) |
| Max Speed | Manual: >60 mph (100 kph, 27 m/s) Auto (Recommended): 40 mph (65 kph, 18 m/s) |
| Environmental | IP56 RATED OPERATING TEMP: -40 to 130F (-40 to 54C) WIND RESISTANCE: CLASS 8 (40mph+) |
| Autopilot | NDAA/BlueSUAS 2.0 compliant MAVLink compatible Commercial specifications standard, Domestic & MIL-spec Other autopilots and encrypted communications standards are available |
| GPS | GPS, GLONASS, BEIDUO + RTK support |
| Ground Control Station | Integrated manual mode 2-stick control, autonomous navigation w/integrated 1920 x 1080 touchscreen LCD Alternative options include ruggedized Windows PCs, Android, iOS |
| C2 | RFD900x, DoodleLabs, MIcrohard, Silvus, Persistent Systems + custom applications |
| Airborne Video Inputs | Dual HDMI inputs support simultaneous use of two airborne sensors |
INTERESTED? BEGIN YOUR INQUIRY HERE.
ADAPT, CUSTOMIZE, AND UPGRADE
The Spirit, like the Spartan, is versatile and adaptable to a growing ecosystem of payloads, power sources, and launch methods that will support your mission today…and tomorrow.
Our team can work with you to take advantage of the Spirit’s modular design and integrate specific payloads to tackle missions exactly to your specifications. While standard bundles are available that offer a cost-effective balance of performance and price, custom integrations with highly-specialized mission equipment are available.
